Chemical Composite Hose
Applications
Multi Chem Red hoses are designed for those chemicals and acids which
do not affect the lining and the stainless steel inner wire.

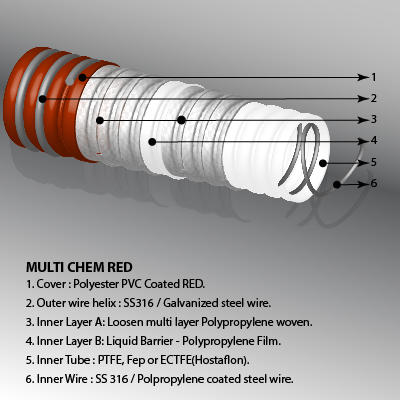

| Construction
Inner wire |
: |
Stainless steel 316 / Polypropylene coated steel |
| Physical properties
Maximum elongation |
: |
10% on proof pressure max. 100 Ohm per length 10° p/m 0,9 Bar 5x working pressure (safety fact. 5:1) on request on request on request -30°C upto +80°C |

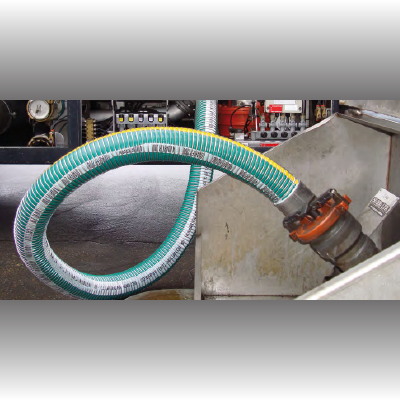

Applications:Chemicals, inks, paints, plant processing, rail cars, tank truck
Inner Wire: Polypropylene coated steel (P)
Internal Liner: Polypropylene fabric
Hose Wall: Multiple layers of fabric/film/tubes
Cover: Yellow PVC-covered polyester
Outer Wire:Polypropylene coated steel (P)
Temp Range:-40F to +212F
Note: Three capital letters are used for the composite hose. The first capital letter means the inner wire; the second capital letter
means the outer wire; the third letter means the carcass.
S—stainless steel 304/304L/316/316L G—galvanized steel E—Polypropylene T— PTFE
